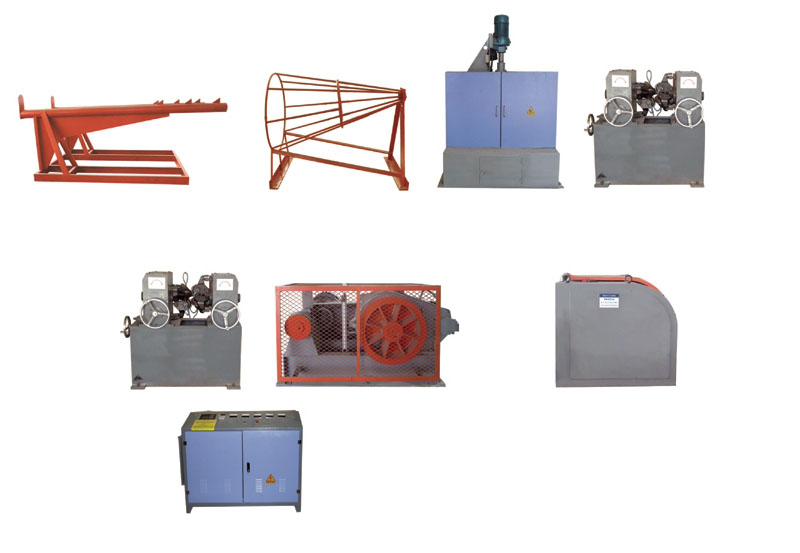

The LZPT12-10A cold-rolled ribbed steel bar production line processes hot-rolled coiled steel bars through cold rolling to form bars with three-sided crescent-shaped transverse ribs. After undergoing descaling, cold rolling, traction, stress relief, and coiling, the finished steel bar products comply with the GB13788-2000 standard. This machine is a highly automated cold-rolling equipment that is extremely user-friendly in operation.
Technical Parameters of Three-Sided Cold-Rolled Ribbed Steel Bar Production Line
|
Model
|
Unit of measurement
|
LZTZ12-10A (with Finished Product Straightening)
|
|
Base metal (raw material)
|
mm
|
Φ6-12
|
|
Finished size
|
mm
|
Φ5-11
|
|
Linear velocity
|
m/min
|
180~360
|
|
Speed Regulation
|
|
Variable Frequency Drive
|
|
control mode
|
|
PLC+ touch screen
|
|
Total power
|
Kw
|
160~300
|
|
Total weight
|
Kg
|
~10000
|
|
Working Area (including pay-off, min)
|
Length * width * height
|
30×3.5×2
|
|
Pay-off Stand
|
Unit
|
Dual-set Cannon-type
|
|
Wire Aligner
|
Unit
|
Yes
|
|
Butt welder
|
Unit
|
Yes
|
|
Rolling times
|
|
2
|
|
Roll size
|
|
Φ150
|
|
Traverse method
|
|
Plain Shaft Traverser
|
|
Take-up weight
|
Kg
|
1000--2000
|
|
Take-up Machine
|
Unit
|
1
|
|
Descaling machine
|
Unit
|
1 (Electrically Pressurized Dust Removal Type)
|
|
Stress Relief Unit
|
Unit
|
1
|
|
Operation console
|
Unit
|
1
|
|
Cooling system
|
Unit
|
1
|
|
Wire Drawing Machine (Patent Technology)
|
Unit
|
Φ850 Type (Lubricant-free, Environmentally Friendly) type)
|
|
Rolling Mill
|
Unit
|
2 Mills
|
|
Operators Required
|
Person
|
２
|
