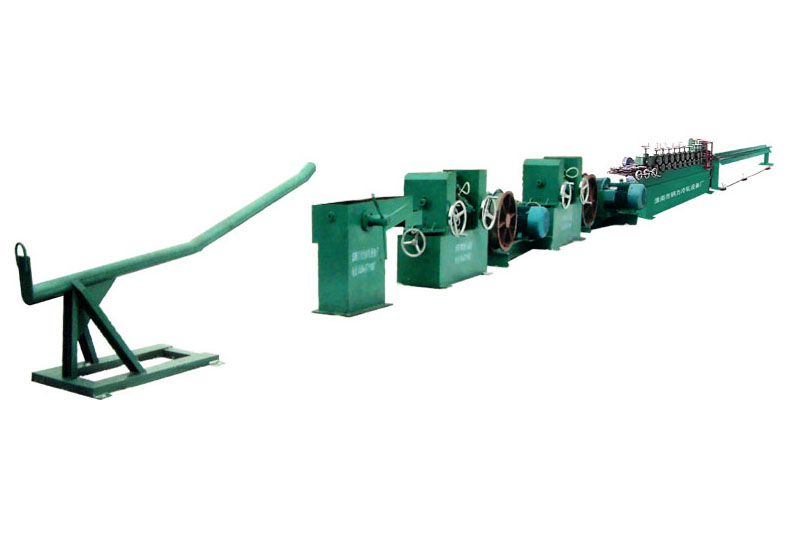

The ZT series cold-rolled ribbed steel bar equipment production line processes hot-rolled coiled steel bars through cold rolling and surface cold rolling to form bars with three-sided crescent-shaped transverse ribs. These bars are then straightened, cut, and discharged, producing cold-rolled ribbed steel bars ready for direct use in in-situ casting or precasting construction projects. The products comply with the GB13788—2000 standard.
This machine features a high degree of automation and is extremely user-friendly. It is a highly efficient online straightening (one-pass straight bar forming) production line. Compared to coiled cold-rolled ribbed steel bars that require straightening afterward, it can save approximately 30 RMB per ton in production costs.
It is the fastest cold-rolled ribbed steel bar unit, equipped with thirty sets of preset lengths and a high-efficiency shear capable of cutting 500 mm lengths with a precision of 5 mm. It can also operate stably at a speed of 180 meters per minute, making it a uniquely efficient unit currently available.
Structural Features:
1.Exclusive Design: Thirty sets of presets with recyclable settings effectively solve the efficiency loss caused by downtime for size changes, achieving 2–3 times the efficiency of conventional equipment.
2.Innovative Cutting System: Utilizes an AC servo motor with intermittent operation design, resulting in minimal mechanical wear and a long service life. The motor operates for only 0.1 seconds per cut, avoiding issues such as consecutive misfeeds and poor operational reliability.
3.Exclusive Design: Incorporates a dual pay-off stand and wire alignment system, eliminating the need for manual wire feeding. This reduces downtime for threading and welding, thereby enhancing efficiency.
4.Exclusive Design: Equipped with a secondary finished product collection device, facilitating the bundling process.
5.Can be paired with a unique traction machine that operates without lubricating powder or fluid, reducing costs and enabling dust-free production (Model ZT12-10C).
6.The machine adopts a fully roller-type traction and straightening structure, effectively preventing damage to the ribs.
7.This series of cold-rolling equipment can be fitted with alloy wire drawing drums and two horizontal heavy-duty wire drawing machines, offering easy threading and simple adjustment. This avoids issues such as wire breakage due to improper adjustment and unstable product quality.
8.For diameter reductions of approximately 1 mm, a single wire drawing machine can be used, simplifying operation and saving energy.
9.Innovative Cutting System: Employs an AC asynchronous motor with intermittent operation design, resulting in minimal mechanical wear and a long service life. The motor operates for only 0.3 seconds per cut, avoiding issues such as consecutive misfeeds and poor reliability commonly found in traditional straightening machines.
10.Both rolling mills feature an all-steel structure, offering high load-bearing capacity and resistance to damage.
11.The unit is equipped with an AC asynchronous stepless speed regulation motor, featuring a simple control circuit, high reliability, nearly maintenance-free operation, and ease of control. It can also be configured with variable frequency speed regulation.
12.The discharge rack features a 360-degree rotation design, preventing bar clamping and avoiding frequent adjustments and discharge jams.
|
Name
|
unit of measurement
|
Technical parameter
|
|
|
|
|
|
On-line straightening
|
On-line straightening
|
On-line straightening
|
On-line straightening
|
|
Model
|
|
ZJ8-7
|
ZJ12-10
|
ZJ8-7A
|
ZJ12-10A
|
ZT8-7A
|
ZT12-10A
|
ZT8-7B
|
ZT12-10B
|
|
Diameter of base metal
|
mm
|
φ6.5-8
|
φ6.5-12
|
φ6.5-8
|
φ6.5-12
|
|
|
φ6.5-8
|
φ6.5-12
|
|
mm
|
φ6.5-8
|
φ6.5-12
|
|
Finished size
|
|
φ5-7
|
φ5-10
|
φ5-7
|
φ5-10
|
φ5-7
|
φ5-10
|
φ5-7
|
φ5-10
|
|
Linear velocity
|
M / min
|
80
|
80
|
150
|
180
|
80
|
80
|
150
|
150
|
|
m/min
|
|
Predetermined length
|
m
|
|
|
|
|
1.5～90
|
1.5～90
|
1.5～90
|
|
m
|
|
Discharge Chute Length
|
m
|
|
|
|
|
8
|
8
|
8
|
8
|
|
m
|
|
Discharge Chute Type
|
|
|
|
|
|
360°rotate
|
360°rotate
|
360°rotate
|
360°rotate
|
|
Secondary Collecting Length
|
m/米
|
|
|
|
|
|
|
6▲
|
6▲
|
|
Secondary Collecting Method
|
|
|
|
|
|
|
|
360° rotate
▲
|
360° rotate
▲
|
|
Speed Regulation
|
|
|
stepless
|
stepless
|
stepless
|
stepless
|
stepless
|
stepless
|
stepless
|
|
Finished Product Conveyor Length
|
m
|
|
|
|
|
Optional per request
|
Optional per request
|
Optional per request
|
Optional per request
|
|
m
|
|
Cutting error
|
mm
|
|
|
|
|
±2.5
|
±2.5
|
±2.5
|
±2.5
|
|
mm
|
|
Total power
|
KW
|
～50
|
～65
|
～75
|
～110
|
～55
|
～75
|
～75
|
～110
|
|
KW
|
|
Total weight
|
kg
|
～5000
|
～6500
|
～6500
|
～9000
|
～7000
|
～8000
|
～8000
|
～11000
|
|
Kg
|
|
Working area
|
Length * width * height
|
20×2.5×2
|
20×3×2
|
25×3×2
|
25×3.5×2
|
32×4×2
|
32×4×2
|
40×4×2 Produce 12 meters
|
45×4×2 Produce 12 meters
|
|
(including pay-off, min)
|
m
|
|
Pay-off Stand
|
|
|
|
With single set
|
With double set
|
With single set
|
With single set
|
With double set
|
With double set
|
|
Wire Aligner
|
|
|
|
yes
|
yes
|
|
|
yes
|
yes
|
|
Butt welder
|
|
|
|
yes
|
yes
|
|
|
yes
|
yes
|
|
Rolling times
|
|
2
|
2
|
2
|
2
|
2
|
2
|
2
|
2
|
|
Roll size
|
mm
|
φ150
|
φ150
|
φ150
|
φ150
|
φ150
|
φ150
|
φ150
|
φ150
|
|
Traverse method
|
|
Plain Shaft Traverser
|
Plain Shaft Traverser
|
Plain Shaft Traverser
|
Plain Shaft Traverser
|
|
|
|
|
|
Take-up weight
|
kg
|
700
|
1000
|
700
|
1000
|
|
|
|
|
|
Take-up Machine
|
platform
|
1
|
1
|
1
|
1
|
|
|
|
|
|
On-line straightening machine
|
platform
|
|
|
|
|
1
|
1
|
1
|
1
|
|
Descaling machine
|
platform
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
|
Stress Relief Unit
|
platform
|
1
|
1
|
1
|
1
|
|
|
|
|
|
Operation console
|
platform
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
|
Cooling system
|
set
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
|
Wire drawing machine
|
|
Type 500
|
|
Type 650
|
Type 750
|
Type 650+750
|
Type 650+750
|
Type 650+800
|
|
|
Number of Units
|
|
2
|
2
|
2
|
2
|
2
|
2
|
2
|
2
|
|
rolling mill
|
|
2 Rolling Mills
|
2 Rolling Mills
|
2 Rolling Mills
|
2 Rolling Mills
|
2 Rolling Mills
|
2 Rolling Mills
|
2 Rolling Mills
|
2 Rolling Mills
|
|
Output (based on φ7 mm bar)
|
kg
|
1449 kg
|
1449 kg
|
2718 kg
|
3260 kg
|
1449 kg
|
1449 kg
|
2718 kg
|
2718 kg
|
|
kg
|
Per hour
|
Per hour
|
Per hour
|
Per hour
|
Per hour
|
Per hour
|
Per hour
|
Per hour
|
|
Output (based on φ10 mm bar)
|
|
|
2960 kg
|
|
6660 kg
|
|
2960 kg
|
|
5550 kg
|
|
|
|
Per hour
|
|
Per hour
|
|
Per hour
|
|
Per hour
|
|
Operators Required
|
People / Line
|
2+
|
2+
|
2+
|
2+
|
3+
|
3+
|
3+
|
3+
|
Note: ▲ denotes optional accessories. Specifications are subject to change without prior notice.
|
|
