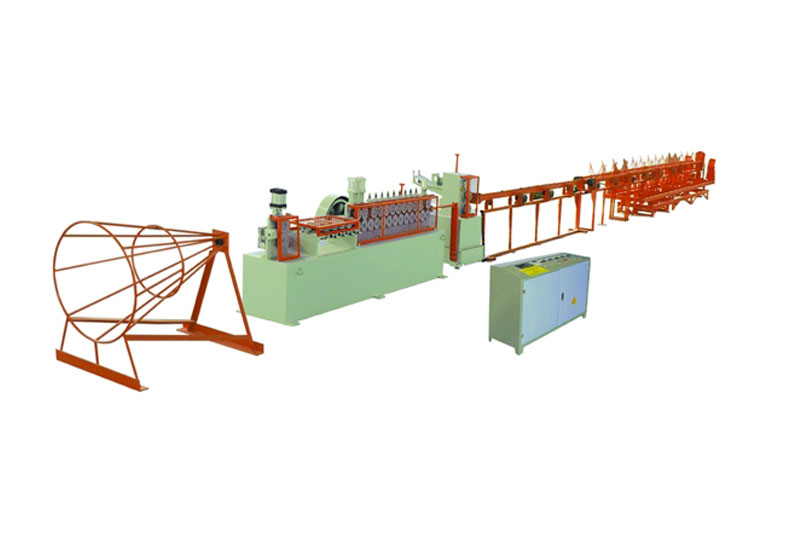

Our company now launches a new model of straightening machine, which achieves a straightening speed of over 200 m/min. It delivers excellent straightening results with no flipping or twisting. Interested parties are welcome to inquire with our company.
Technical Parameters of Straightening Machines
|
Name
|
unit of measurement
|
Technical parameter
|
|
Model
|
|
LTZ12-12A
|
LTZ12-12B
|
LRTZ12-12A
|
LRTZ12-12B
|
RTZ12-12A
|
RTZ16-16B
|
|
Types of straightening reinforcement
|
|
Cold rolled and hot rolled coil
|
Cold rolled and hot rolled coil
|
Cold rolling and hot rolling plate
|
Cold rolling and hot rolling plate
|
Hot rolled plate
|
Hot rolled plate
|
|
Straightening diameter
|
mm
|
Φ4-10/12
|
Φ4-10/12
|
Φ4-12
|
Φ4-12
|
Φ5-12
|
Φ6-16
|
|
Straightening speed
|
m/min
|
50
|
80
|
80
|
180
|
180（200）
|
180（200）
|
|
Predetermined length
|
m
|
0.5--99
|
0.8--99
|
1--99
|
1--99
|
1--99
|
1--99
|
|
Cutting error
|
mm
|
±7（±2）
|
±5（±2）
|
±5（±2）
|
±2
|
±2
|
±2
|
|
Length of chute
|
m
|
6
|
8
|
8
|
8--12
|
8--12
|
8--12
|
|
Length of material rack
|
m
|
1--12m（ More than 9 meters is optional）
|
|
control mode
|
|
A set of controls
|
Two sets of NC cycle
|
Touch screen+PLC
|
Touch screen+PLC
|
Touch screen+PLC
|
Touch screen+PLC
|
|
Host power
|
Kw
|
5.5/7.5
|
15
|
15
|
37
|
37
|
55
|
|
Cutoff power
|
Kw
|
2.2
|
4
|
4.5
|
5.5
|
5.5
|
7.5
|
|
Working area (including discharge)
|
Length * width * height
|
12×1.5×2
|
15×2×2
|
15×2×2
|
30×2×2
|
30×2×2
|
40×2×2
|
|
Weight (approx.)
|
Kg
|
1500
|
1800
|
8200
|
5200
|
5000
|
7200
|
|
Number of traction wheels
|
only
|
6
|
6
|
6
|
10
|
10
|
10
|
|
Straightening method
|
|
rotate
|
rotate
|
Vertical and horizontal and rotate
|
Vertical + horizontal
|
vertical
|
vertical
|
|
Speed regulation method
|
|
Single-speed control
|
Tdual-end speed control
|
Two segment velocity
|
frequency conversion
|
frequency conversion
|
frequency conversion
|
|
Shear control mode
|
|
CNC mechanical
|
CNC mechanical
|
servo control
|
servo control
|
servo control
|
servo control
|
|
Shearing Length Measurement Method
|
|
|
|
|
Rotary Encoding
|
Rotary Encoding
|
Rotary Encoding
|
|
Discharging Rack Type
|
|
single
|
single
|
double
|
double
|
double
|
double
|
|
Automatic Reinforcement Leveling Device
|
|
|
|
|
Equipped
|
Equipped
|
Equipped
|
|
Output of Φ6 mm rebars
|
Kg
|
666 kg/h
|
1000 kg/h
|
1000 kg/h
|
2398 kg/h
|
2398 kg/h
|
2500 kg/h
|
|
Output of Φ8 mm rebars
|
Kg
|
1180 kg/h
|
1900 kg/h
|
1900 kg/h
|
4200 kg/h
|
4200 kg/h
|
4200 kg/h
|
|
Output of Φ10 mm rebars
|
Kg
|
1840 kg/h
|
2950 kg/h
|
2950 kg/h
|
6000 kg/h
|
6000 kg/h
|
6000 kg/h
|
|
Output of Φ12 mm rebars
|
Kg
|
|
|
|
7000 kg/h
|
7000 kg/h
|
7000 kg/h
|
|
Output of Φ14 mm rebars
|
Kg
|
|
|
|
|
|
8000 kg/h
|
|
Output of Φ16 mm rebars
|
Kg
|
|
|
|
|
|
9000 kg/h
|
|
Operator
|
People / Unit
|
1
|
1
|
1
|
2
|
2
|
2
|
|
|
|
|
|
|
|
|
|
|
