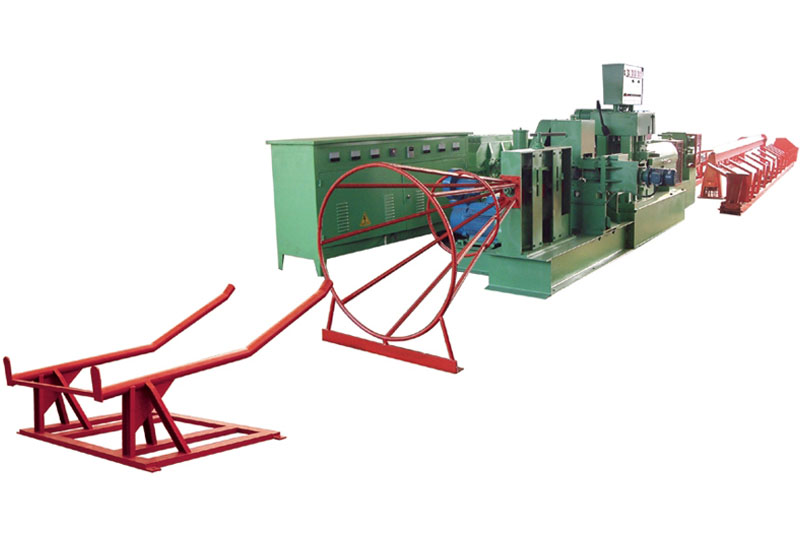

Cold rolled two-ribbed steel bar mill
|
Cold rolled two-ribbed steel bar mill
|
Cold rolled two-ribbed steel bar mill
|
Cold rolled two-ribbed steel bar mill
|
Cold rolled two-ribbed steel bar mill
|
Cold rolled two-ribbed steel bar mill
|
|
Model
|
|
LMD10-9A
|
LMD12-10B
|
LMD12-10C
|
LMS12-10A
|
LMS12-10B
|
LMS16-14C
|
|
Diameter of raw material(before machining )
|
mm
|
φ6-10
|
φ6-12
|
φ6-12
|
φ6-12
|
φ6-12
|
φ6-14
|
|
Diameter of finished product(after machining )
|
mm
|
φ5-9
|
φ5-11
|
φ5-11
|
φ5-11
|
φ5-11
|
φ5-13
|
|
Roller speed
|
m/min
|
120
|
150
|
180
|
150
|
180
|
200
|
|
Predetermined length
|
m
|
1～99
|
1～99
|
1～99
|
1～99
|
1～99
|
1～99
|
|
Length of unloading chute
|
m
|
6～12
|
6～12
|
6～12
|
6～12
|
6～12
|
6～12
|
|
Unloading direction
|
|
Single-direction unloading
|
Two-sided unloading
|
Two-sided unloading
|
Two-sided unloading
|
Two-sided unloading
|
Two-sided unloading
|
|
Unloading and sliding mode
|
|
360-degree rotation
|
360-degree rotation
|
360-degree rotation
|
360-degree rotation
|
360-degree rotation
|
360-degree rotation
|
|
Row spacing of bars
|
mm
|
Optional accessories 5~20
|
|
Length of Secondarily Collected Material
|
m
|
Optional length 6~12
|
|
Material Leveling Method
|
|
Pneumatic automatic leveling
|
|
Speed adjustment
|
|
Adjust speed
|
Variable frequency
|
Variable frequency
|
Variable frequency
|
Variable frequency
|
Variable frequency
|
|
control mode
|
|
Text panel＋PLC
|
Text pane＋PLC
|
Touch screen＋PLC
|
Touch screen＋PLC
|
Touch screen＋PLC
|
Touch screen＋PLC
|
|
Cutting error
|
mm
|
±4
|
±2
|
±2
|
±2
|
±2
|
±2
|
|
main motor power
|
KW
|
75KW
|
90KW
|
132KW
|
75KW＋90KW
|
90KW＋110KW
|
110KW＋132KW
|
|
heating power
|
KW
|
300
|
400（500）
|
500（600）
|
500
|
600
|
800
|
|
Total power
|
KW
|
400
|
500
|
650
|
670
|
800
|
1050
|
|
Total weight (approx.)
|
Kg
|
6000
|
8000
|
14000
|
9000
|
16000
|
20000
|
Min. Working Area (with pay-off)
|
Length × width×height（m）
|
40×5×6
|
50×5×6
|
50×5×6
|
50×5×6
|
55×5×6
|
70×5×6
|
|
Pay-off Stand
|
|
Dual set
|
|
Wire Straightener
|
|
Optional Accessories
|
|
Rolling mill
|
|
top synchronous pressing
|
electric automatic self-alignment
|
electric automatic self-alignment
|
electric automatic self-alignment
|
electric automatic self-alignment
|
electric automatic self-alignment
|
|
Rolling times
|
|
2
|
2
|
2
|
2
|
2
|
2
|
|
Mill Size
|
mm
|
Active millφ228
+Passive millφ155
|
Active mill 228＋Passive millφ210
|
Active millφ228+Passive millφ210
|
Active millφ228＋Active millφ210
|
Active millφ228＋Active millφ210
|
Main millφ228＋Active millφ210
|
|
Straightening method
|
|
In-line Straight Bar
|
In-line Straight Bar
|
In-line Straight Bar
|
In-line Straight Bar
|
In-line Straight Bar
|
In-line Straight Bar
|
|
Take-up Machine
|
|
Optional Accessories
|
|
Output of Φ6 mm rebars
|
Kg
|
1598 kg/h
|
2000 kg/h
|
2398 kg/h
|
2000 kg/h
|
2398 kg/h
|
2660 kg/h
|
|
Output of Φ7 mm rebars
|
Kg
|
2170 kg /h
|
2700 Kg/h
|
3250 kg/h
|
2700 kg/h
|
3250 Kg/h
|
3620 kg/h
|
|
Output of Φ8 mm rebars
|
Kg
|
2800 kg /h
|
3555 kg/h
|
4200 kg/h
|
3555 kg/h
|
4200 kg/h
|
4728 kg/h
|
|
Output of Φ9 mm rebars
|
Kg
|
3500 kg /h
|
4400 Kg/h
|
5000 kg/h
|
4400 Kg/h
|
5000 kg/h
|
5988 kg/h
|
|
Output of Φ10 mm rebars
|
Kg
|
|
5000 kg/h
|
5500 kg/h
|
5000 kg/h
|
5500 kg/h
|
6000 kg/h
|
|
Output of Φ11 mm rebars
|
Kg
|
|
5500 kg/h
|
6000 kg/h
|
5500 kg/h
|
6000 kg/h
|
7500 kg/h
|
|
Output of Φ12 mm rebars
|
Kg
|
|
|
|
|
|
7000 kg/h
|
|
Output of Φ13 mm rebars
|
Kg
|
|
|
|
|
|
8000 kg/h
|
|
Output of Φ14 mm rebars
|
Kg
|
|
|
|
|
|
7000 kg/h
|
|
Output of Φ15 mm rebars
|
Kg
|
|
|
|
|
|
8000 kg/h
|
|
Personnel Required for Complete Operation
|
persons per line
|
3
|
4
|
4
|
4
|
4
|
4
|
