Hot rolled angle steel
  Hot rolled angle steel
  characters：[big][zhong][small]   views：6326      go back

1. Introduction

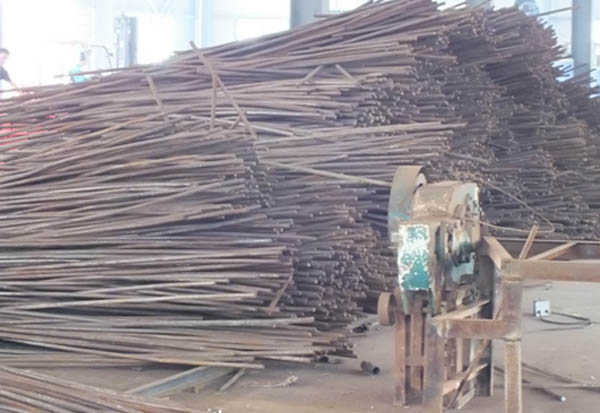

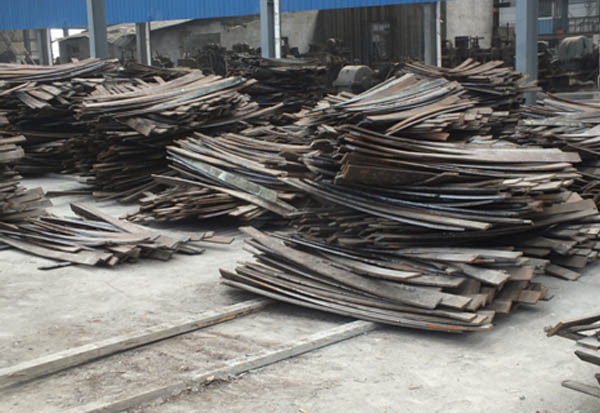

This production line utilizes scrap coarse reinforcing steel bars and waste steel plates to produce angle steel and flat bars.

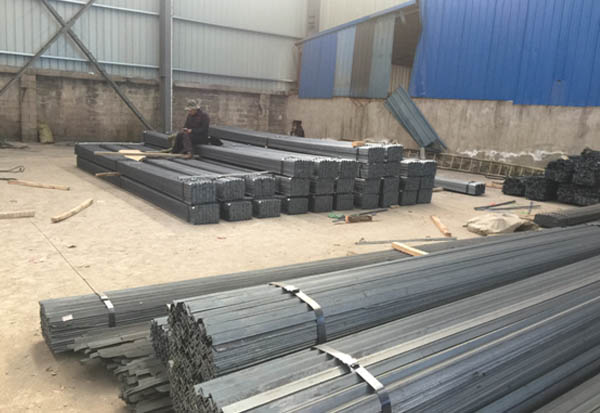

Angle steel

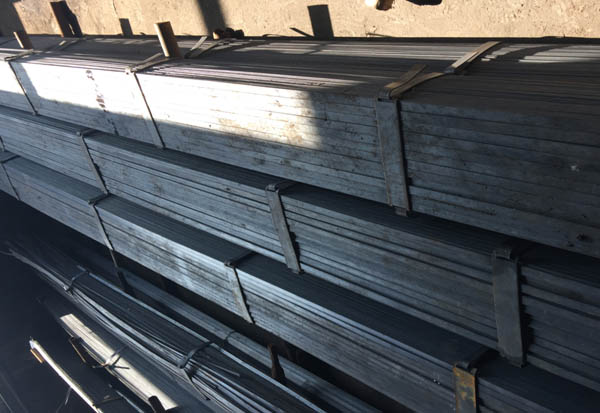

Flat steel

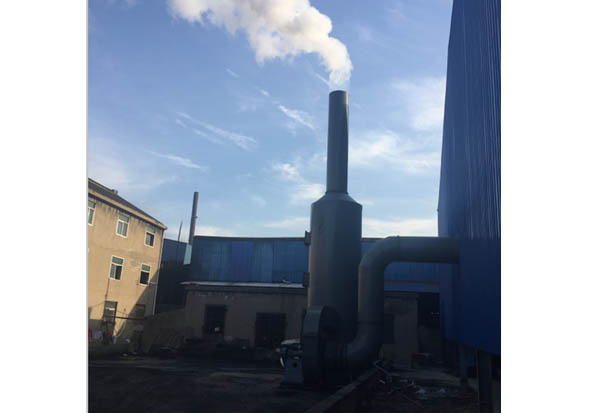

Water mist dust removal system: Emits only water vapor; no smoke produced.

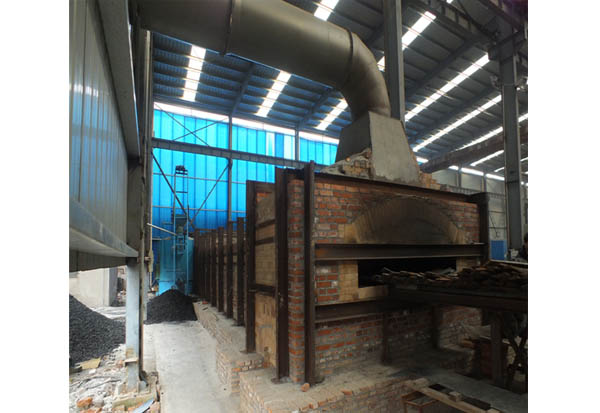

Coal burning stove

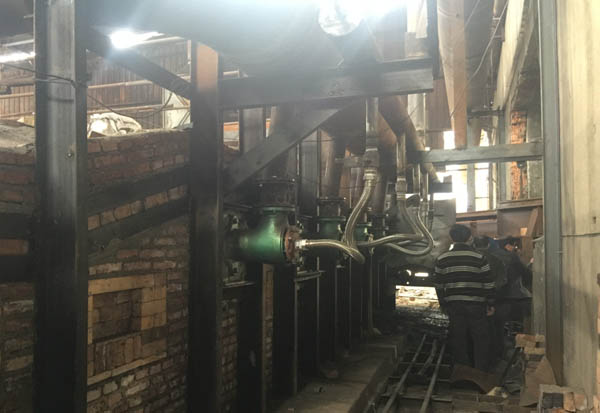

Natural gas furnace

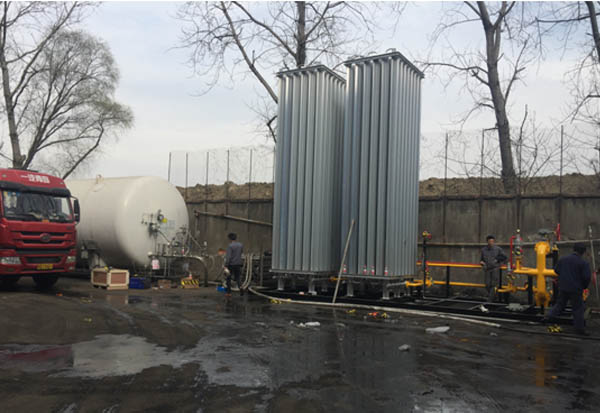

Bottled Natural Gas

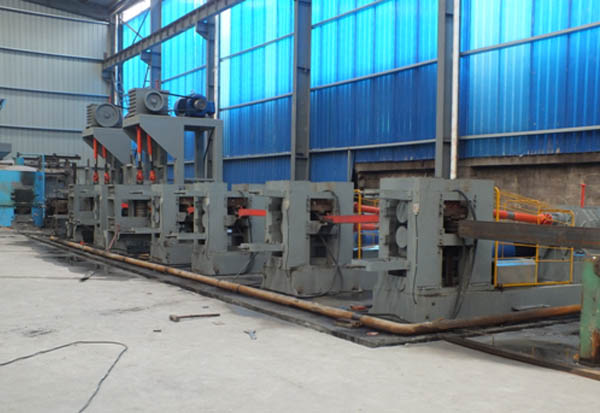

Hot rolling mill

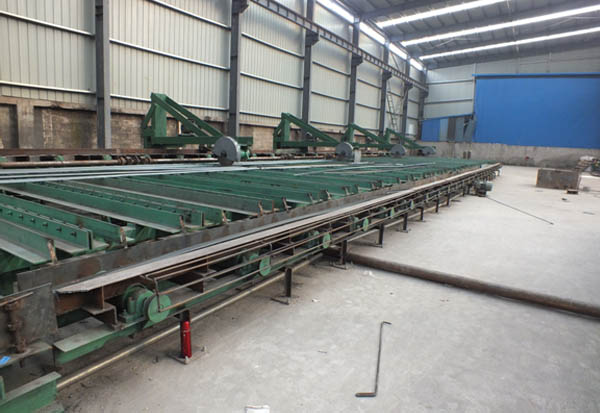

Cooling bed

Basic configuration parameters of angle iron equipment

Product name Company Mill No. 1 Mill No. 2 Mill No. 3 Mill No. 4 Mill No. 5 Mill No. 6 Mill No. 7 Mill No. 8
Model   RZ40 RZ32 RZ28 RZ25 RZ22 RZ20 RZ18 RZ16
Diameter of base metal mm 100 width 16-20 flat iron
Diameter of finished product mm Angles 3 to 4
Roll line speed Meters per minute 35 45 55 80 120 240 280 300
Predetermined length m
Adjust speed   frequency conversion frequency conversion frequency conversion frequency conversion frequency conversion frequency conversion frequency conversion frequency conversion
control mode   Linkage frequency conversion control
Host power KW 132KW 160KW 160KW 132KW 200KW 200KW 200KW 220KW
Total power KW 1400
Rolling mill   Electric adjustment Electric adjustment Electric adjustment Electric adjustment Electric adjustment Electric adjustment Electric adjustment Electric adjustment
Roll size mm Roll surface roll diameter phi 300/ length L500
